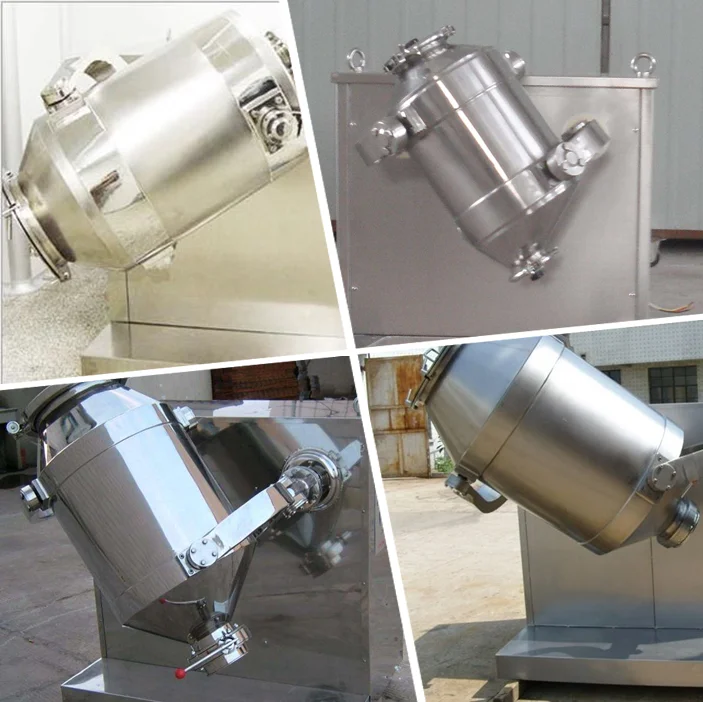

SH-300 Large Scale 3D Powder Mixer Blending Powding Machine

FOB Reference Price:Get Latest Price
$1,000.00 - $53,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SYH-300
Report Suspicious Activity
Overview
Quick Details
Barrel Volume (L):
300
Max. Loading Volume (L):
240
Range of Spindle Speed(r.p.m):
1 - 12
Max. Loading Capacity:
150 kg
Weight (KG):
1000
Applicable Industries:
Manufacturing Plant
Application:
Medicine Processing, Chemicals Processing, Food Processing, Powder
Condition:
New
Mixer Type:
Planetary Mixer
Product Type:
Other
Additional Capabilities:
Other
Place of Origin:
Liaoning, China
Brand Name:
FUYI
Voltage:
Customized
Dimension(L*W*H):
1800*1950*1700 mm
Certification:
ISO9001
Power (kW):
3
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Key Selling Points:
Long Service Life
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard exported ply-wood case for small powder mixer
Port
Dalian port
Product Description

 Product Application

The machine is suitable for high evenness mixing of materials in such industries as chemical industry, medicine, battery, metallurgy, food and scientific research units.

Principle

When it works, the mixer is provided with three-dimensional movement, and carries out revolution and rotation. The mixer has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

Model
Mixing
Volume L
Maximum
  Loading L
Speed
(rpm)
Total Power
(Kw)

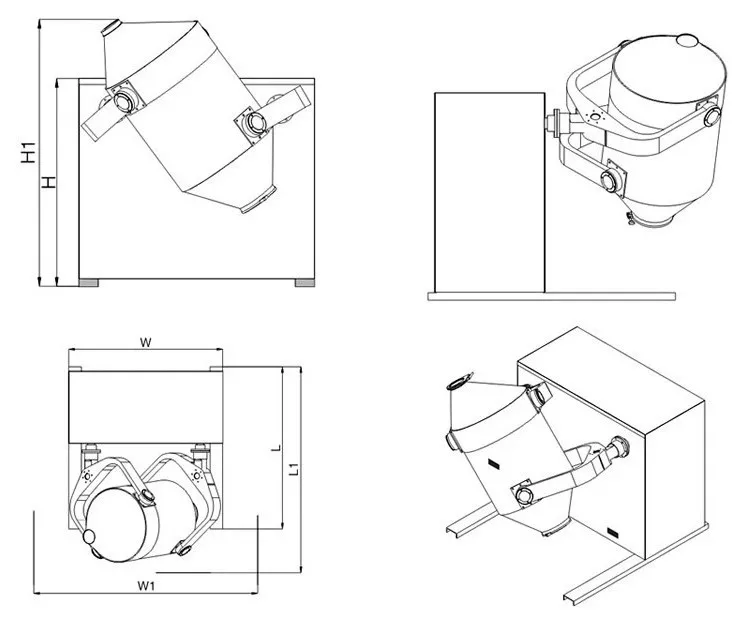

Dimension(L*w*H)
Weight
(kg)
SYH-5
2
1
0-12
0.18
300*450*300
15
SYH-5
5
4
0-12
0.25
600*1000*700
150
SYH-15
15
12
0-12
0.37
700*1000*700
200
SYH-50
50
40
0-12
1.1
1000*1400*1100
300
SYH-100
100
80
0-12
1.5
1200*1700*1200
400
SYH-200
200
160
0-12
2.2
1400*1800*1500
600
SYH-300
300
240
0-12
3
1800*1950*1700
800
SYH-400
400
320
0-12
4
1800*2100*1800
920
SYH-500
500
400
0-12
5.5
1900*2000*1950
1380

Main Features

1. The mixer is provided with three-dimensional movement so that the materials complete the process of mutual mixing from the agglomeration status to dispersion status under the actions of flowing , shearing, translational movement and dispersion, even mixing of materials is ensured and the evenness reaches 99.9%. In ordinary mixers, the materials only make simple dispersion and agglomeration movement in the vessel, which is featured by low efficiency and bad mixing quality.
2. With short mixing time and high efficiency, the effective loading rate of the vessel reaches 80%. (The rate of ordinary mixers in only 40%.)
3. The machine is low and does not have special requirements for plants, so that investment in basic construction is reduced.
4. The mixing barrel and machine body driving part can adopt partition installation to meet GMP requirement.
5. For the SYH-2 model mixer, mixing vessels of various shapes can be placed in the mixing barrel for mixing with convenient use.
6. Stepless speed adjustment can be realized to facilitate material loading and unloading.
7. It is featured by long service life and low noise.
8. Vacuum feeding and lifting machine feeding are avaliable.

Packing & Delivery
Our service

•12 months long guarantee period from machine arriving date.
•Abundant spare parts in stock are available to provide.
•Our technicians could be dispatched for overseas service.
•24 hours technical consultation.
•Routine tracing till the machine work properly will be done timely.
•We will remind you to do the normal maintenance.
•Your suggestions or any comments & reflection would be treated in priority.
•Your workers can get training easily by net video.

Hot line :
Hot line: 8618104024665 (whatsapp)
Wechat: molly3469
Skype: live:molly3469

Our company

Liaoning FUYI Machinery Co.,Ltd

Liaoning FUYI Machinery Co.,Ltd was established in June 2011 formerly known as Liaoning Sunny Pharmaceutical Machinery Co.,Ltd. FUYI  is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
